Razor Display Installation Instructions
- Remove the front number plate from the bike.

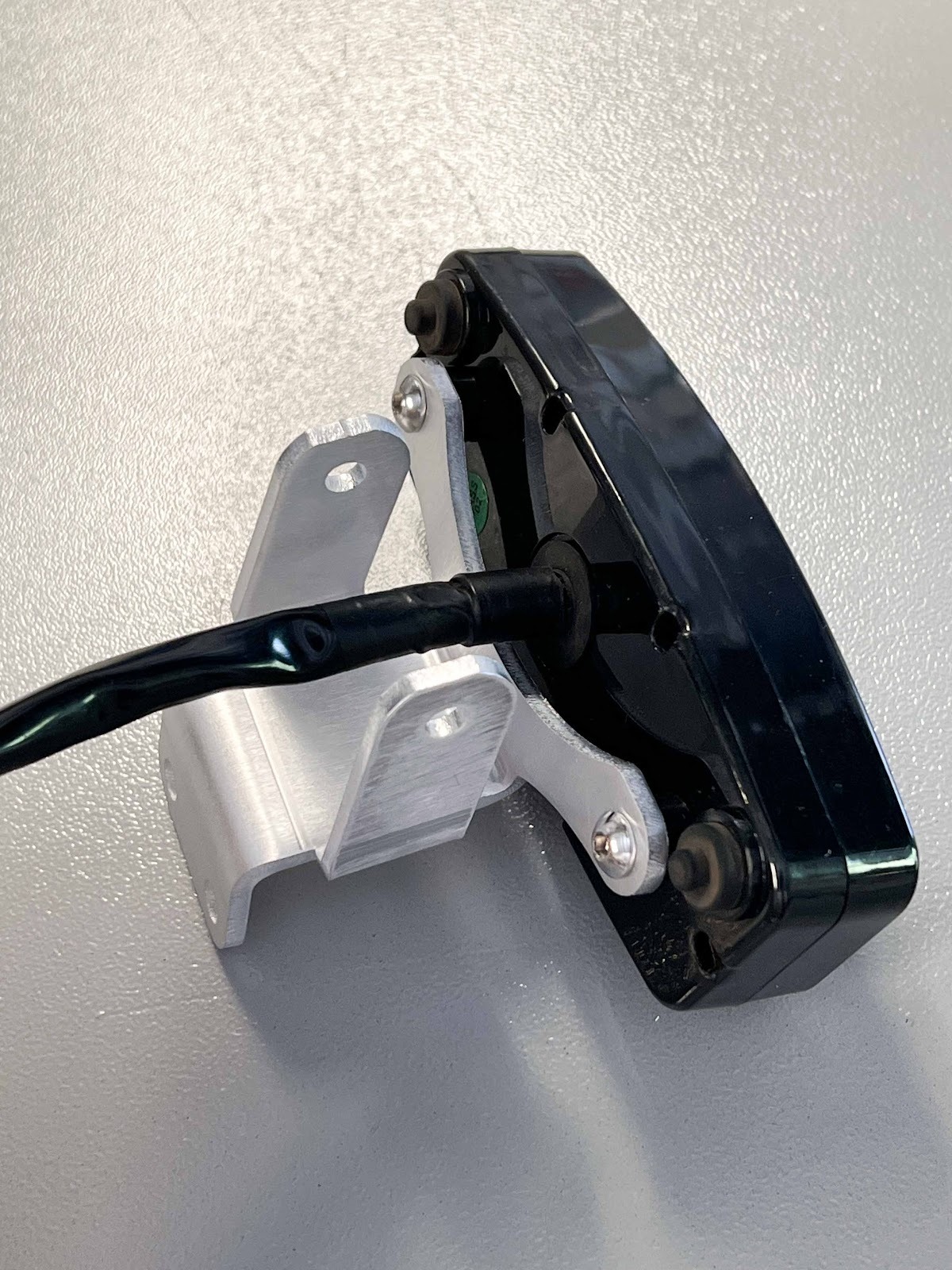

- Attach the display to the display bracket using two M5x10mm button head screws as shown.
- If currently running a headlight, remove the headlight from the bike and attach to the display mount using the same hardware previously used to mount the headlight.

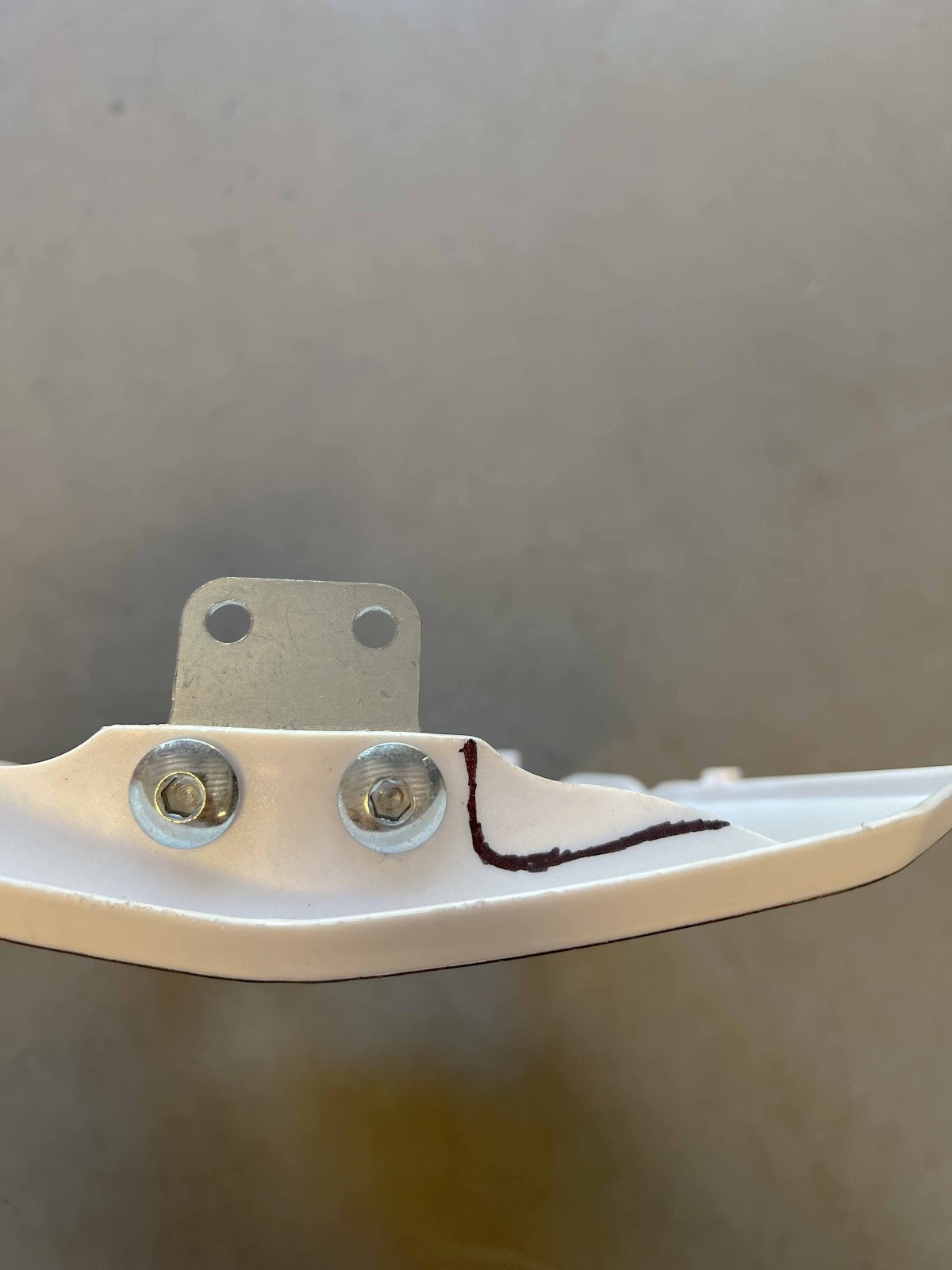

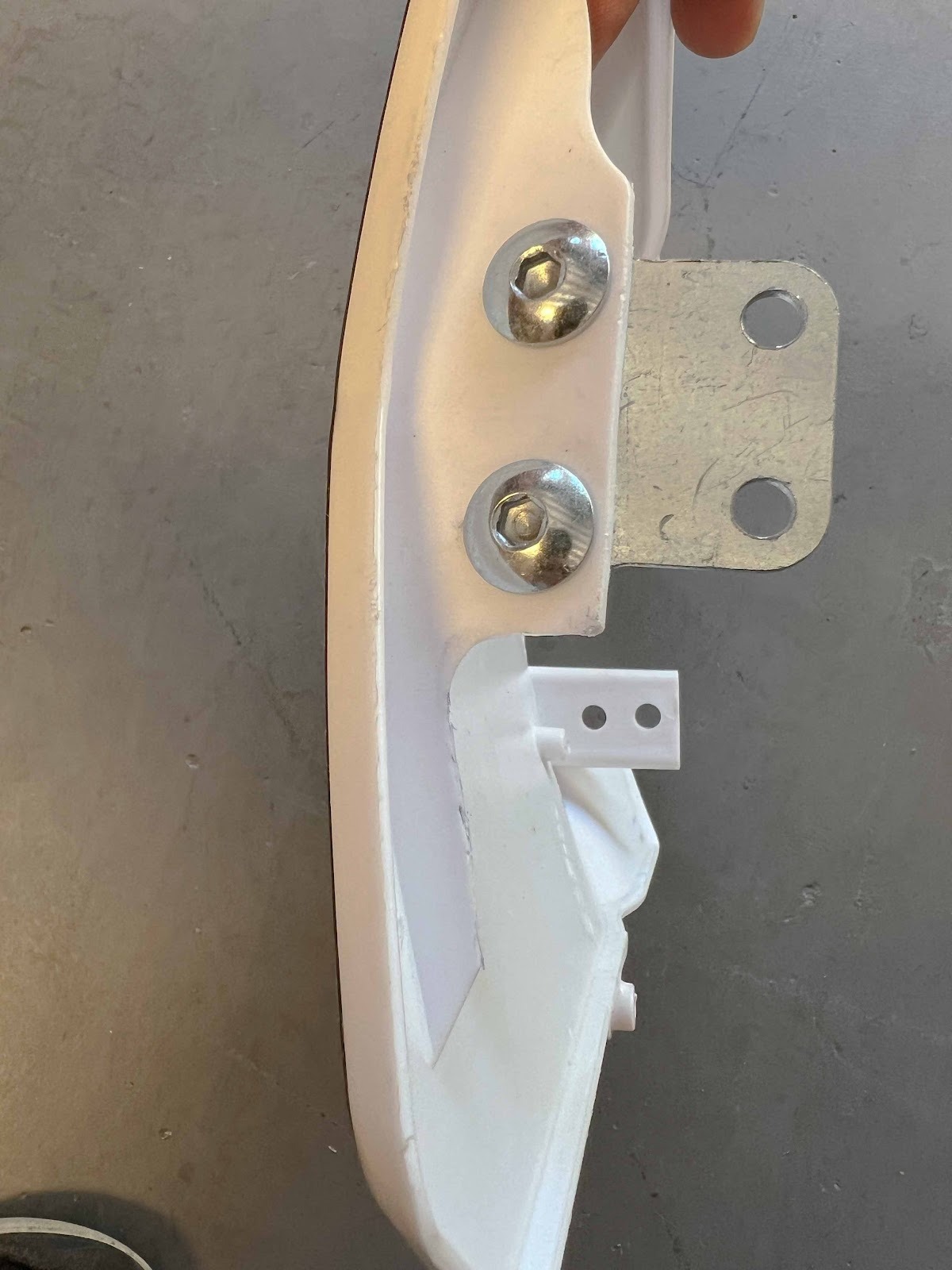

- It may be helpful to trim the front number plate as shown to simplify wire routing. Wires from the display and headlight should be routed to the left of the bracket where the cutout has been made.

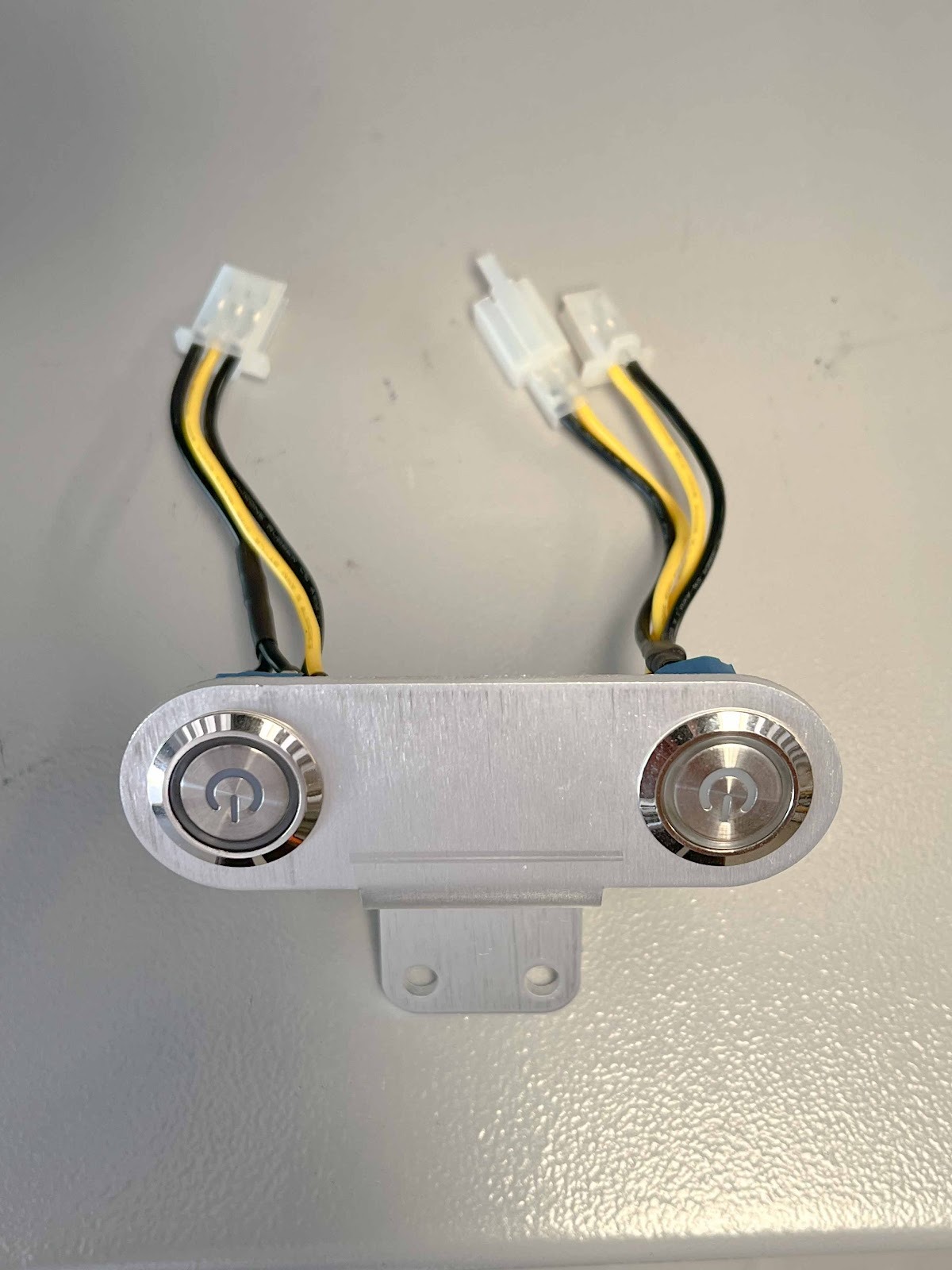

- If running a headlight, the push button switches for the DC-DC converter and headlight can be mounted to the switch mount as shown.

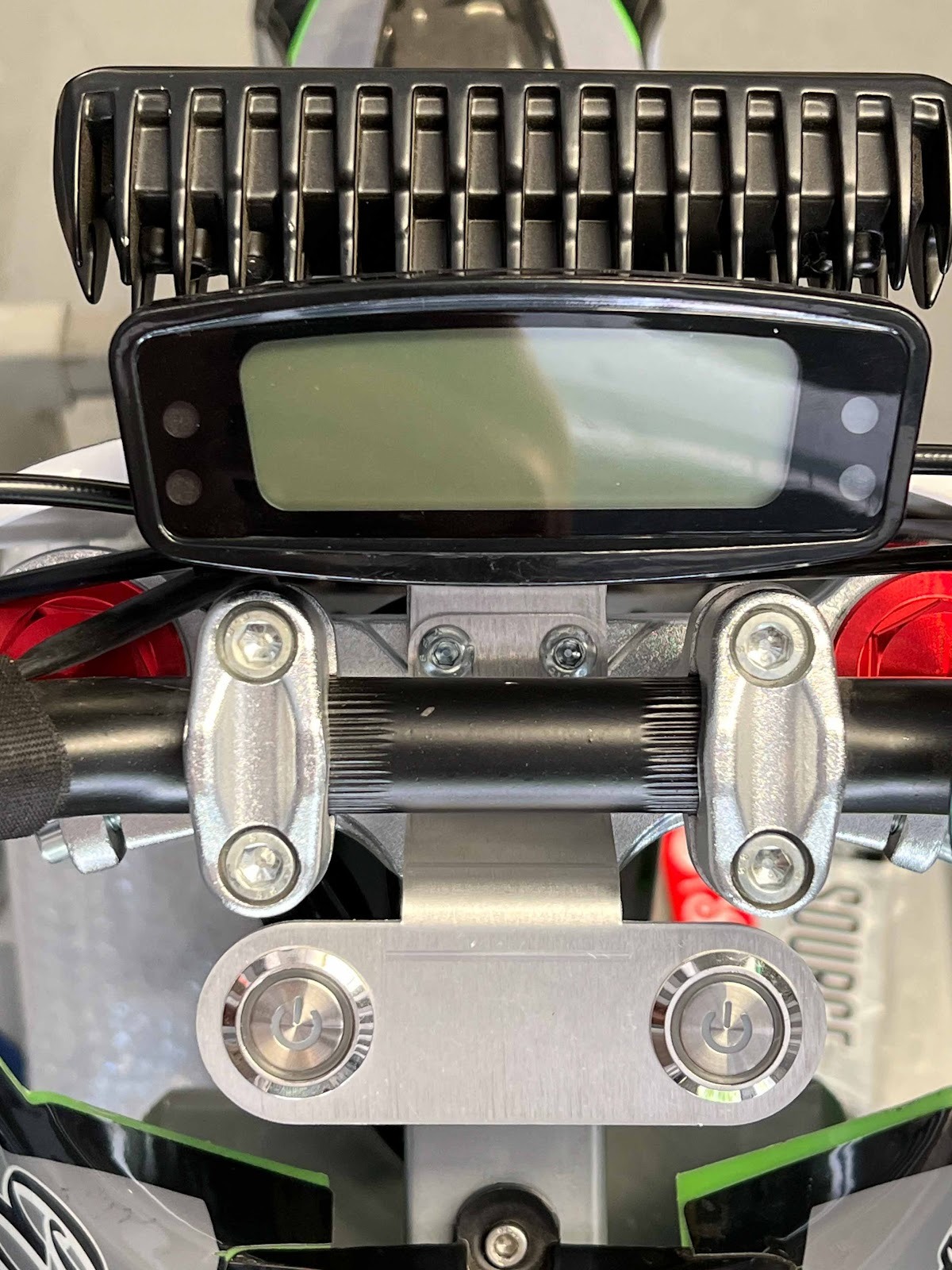

- Attach the front number plate, display mount, and switch mount to the upper triple clamp using two M6x16 button head screws. All three components will be stacked on top of each other as shown with the front number plate mount on the bottom, display mount in the middle, and switch mount on top.
- Plug the display into the appropriate connector on the wiring harness (it will only fit into one connector).
- If you are currently running a volt meter, the new display will replace the volt meter and plug into the same connector.
- If you are currently running a keyswitch volt meter, this must be replaced either with a power switch (included) or with a standalone keyswitch (not included)
- If you are currently running a Cricket controller, remove the old harness from the bike and replace it with the new harness that was included in the kit.
- Installation is now complete, when the bike is powered on the display should now illuminate.
Programming your display
E&C Razor Display Kit tuning instructions
Congratulations on your purchase! Please note that some settings may need to be adjusted on the display to read accurately with your build.
You may just need to adjust the battery voltage for your battery so that the battery SOC reads correctly.
To adjust L (Low battery) / H (High battery)
Note: “L” will display as “U” during initial boot up
Long press the back left button within 10 seconds of initial boot up for 10 seconds
“L” will appear (Low battery)
Short press back right button changes by a tenth
- (Recommend doing 1-2 second holds at a time)
Long press back right button changes by a single unit
Once value is set, long press back left button to toggle to next value
“H” will appear (High battery)
Short press back right button changes by a tenth
- (Recommend doing 1-2 second holds at a time)
Long press back right button changes by a single unit
Once value is set, long press back left button to complete settings change
48v S = 13 H: 54v L:39v | 52v S = 14 H: 58v L: 42v | 60v s=16 H: 66v L: 50v |
72v S= 20 H: (84v) 84v L: (60v) 60v | 76v S= 21 H: 88v L: 63v |
To adjust MPH to KPH / B (Gear reduction) / C (Wheel Circumference) / J (Motor Poles)
Long press the back right button within 10 seconds of initial boot up for 10 seconds
- MPH will start to flash
Press the back left button to toggle value to KPH
If change is not required, long press back right button for 10 seconds
“C” should appear
Short press back left changes single value
- (Recommend doing 1-2 second holds at a time)
Long press back left changes by “10”
Once value is set, long press back right button to toggle to next value
Adjustment range 800 - 2000, if it exceeds 2000, it will reset to 800
If change is not required, long press back right button for 10 seconds
“J” should appear
Short press back left changes single value
- (Recommend doing 1-2 second holds at a time)
Long press back left changes by “10”
Once value is set, long press back right button to toggle to next value
The setting range is 1 to 1000, if it exceeds 1000, it will reset to 1
If change is not required, long press back right value for 10 seconds
“B” should appear
Short press back left changes single value
- (Recommend doing 1-2 second holds at a time)
Long press back left changes by “10”
Once value is set, long press back right button to complete settings change
The setting range is 1 to 100, if it exceeds 100, it will reset to 1
Gear Reduction:
To calculate your gear reduction, take the rear sprocket teeth and divide it by the motor sprocket teeth.
Ex: 65t / 10t = 6.5
Wheel Circumference:
10 inch wheel - 1270 mm
12 inch wheel - 1380 mm
14 inch wheel - 1437 mm
Motor Pole:
ETM 2.0 Motor - 5
EC4P Lite - 4
The “One” - 4
