Little Bit Razor Mounting Instructions
These instructions are intended to be a guide for installing your Little Bit Controller from Electro &
Company. While every effort has been made to create an easy and intuitive experience, sound
judgment should always be used and best practices for any mechanical and electrical installation
still apply. Please take your time and reference the instruction sections applicable to your build.

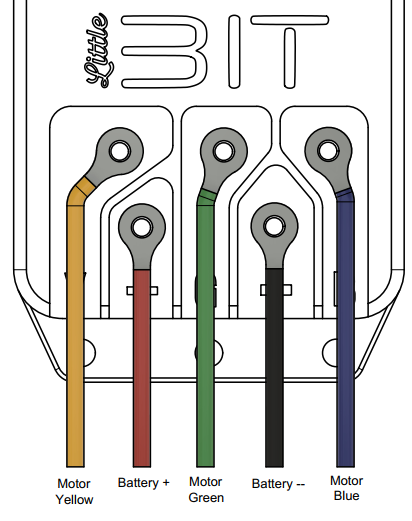

Little Bit Wiring Diagram
- Note: The main wiring harness and accessories are designed such that most connectors on the Little Bit Controller will only plug in one way. For any similar connectors, pay attention to the labels on each labeled connector and match them to the correct accessory.
- Connect the motor and battery terminals to the controller as follows:
| Terminal | Lead |
| + | Battery + (Red) |
| – | Battery – (Black) |
| Y | Motor Yellow |
| G | Motor Green |
| B | Motor Blue |
Little Bit Mounting Diagrams
- Note: It is recommended to use medium strength (blue) thread locker on all fasteners.
|

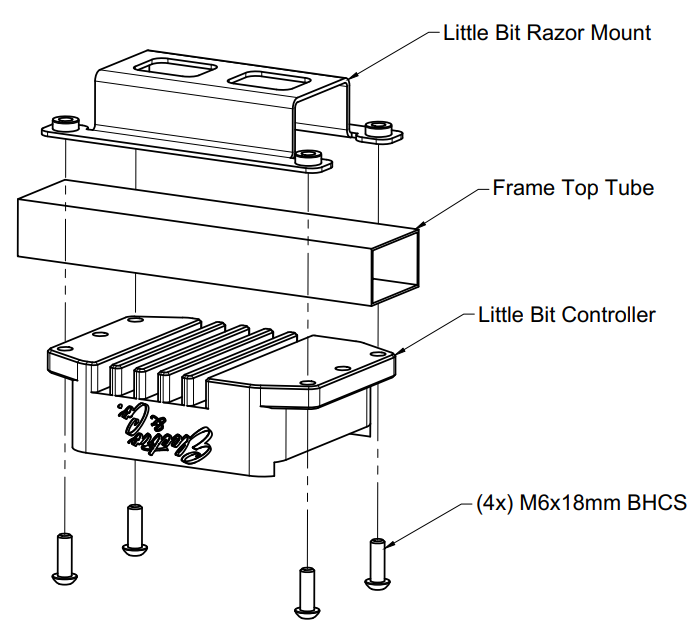

No Cooling Fan |
Step 1
|

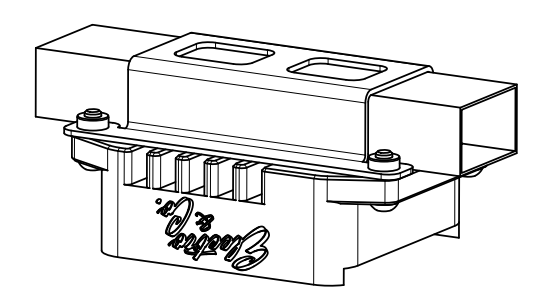

Assembled
|
||||
|
Short Cooling Fan |

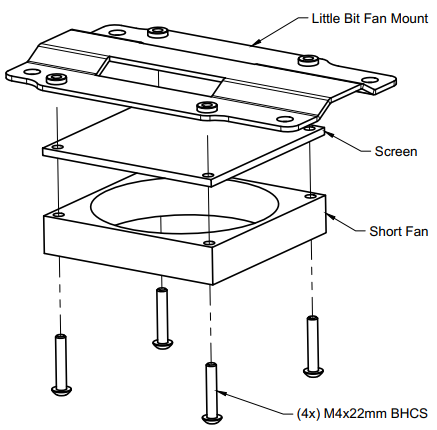

Step 1
|

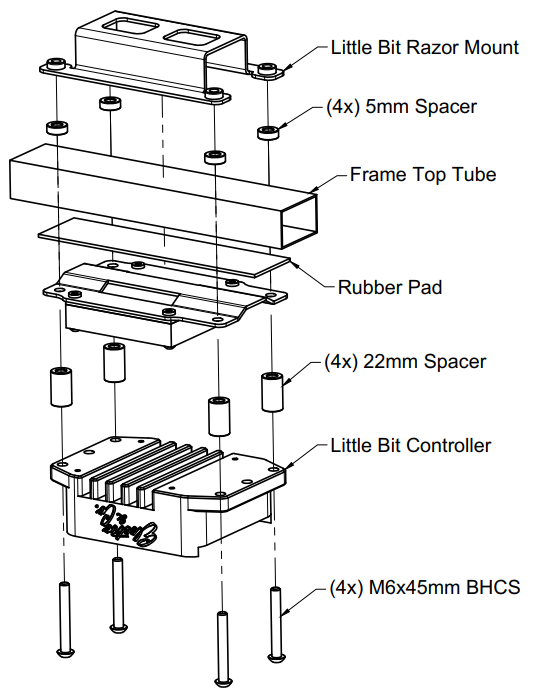

Step 2 |

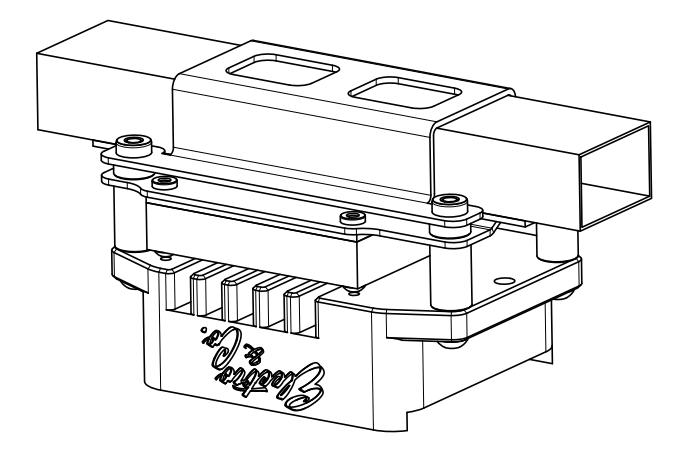

Assembled
|
|||
|
Tall Cooling Fan |

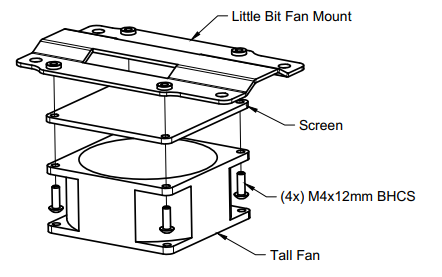

Step 1
|

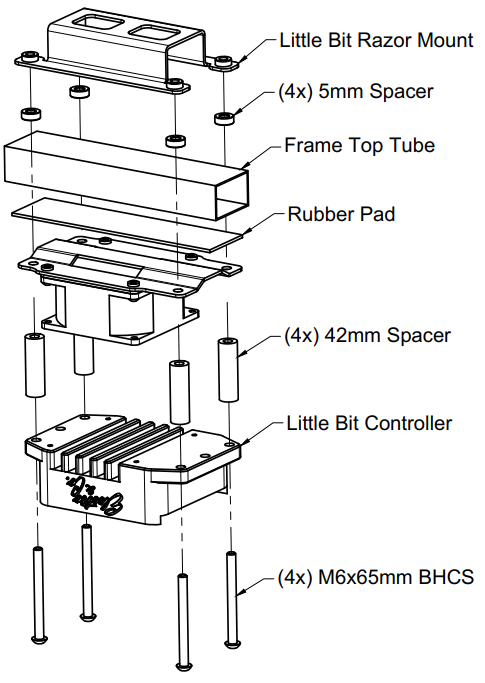

Step 2 |

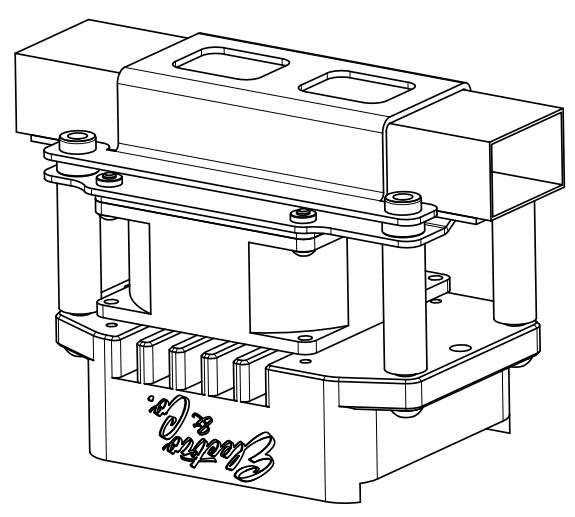

Assembled
|
|||
Download PDF HERE
