To center your brake caliper:

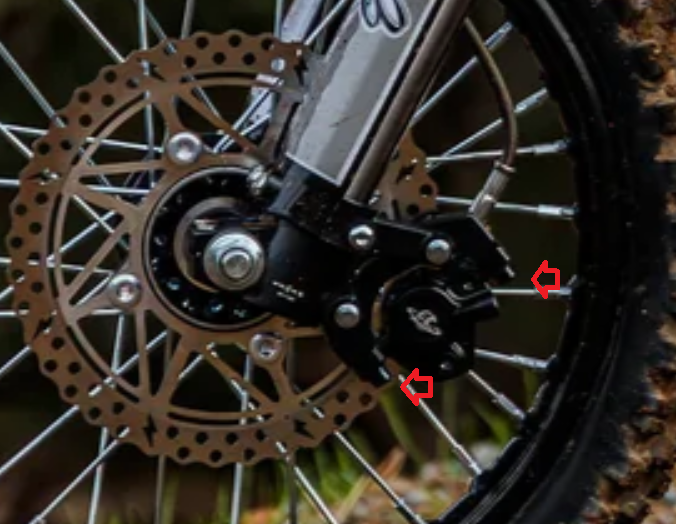

1. Loosen the 2 bolts shown below so that they're hand tight
2. Firmly press the brake lever of the caliper you are adjusting
3. While holding the brake lever, tighten the two hand tight bolts
4. This should ensure your caliper is as centered as possible on the brake rotor to prevent drag
